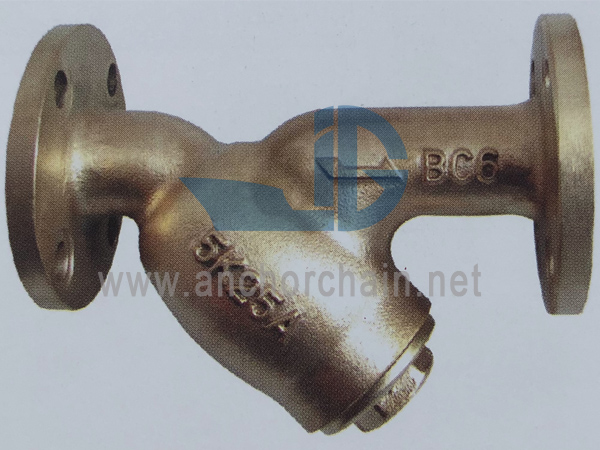

JIS F 7220Q Bronze Y Type StrainerDesign ມາດຕະຖານ: JIS F7220Q-1996Test Standard: JIS 7200-1996Hydraulic Test Pressure: Body- 1.05MpaFlange size as per JIS B2220 - 5K
Marine Bronze Y strainer JIS F7220Q 5K
ຫມວດ: JIS Marine Strainer & Filter
ວັດສະດຸ: Bronze
ມາດຕະຖານ: JIS F7220Q
ໃບຢັ້ງຢືນ:CCS,BV,GL,NK,RINA,ABS,DNV,LR
ລາຄາ Fob: ໄດ້ລາຄາຫຼ້າສຸດໃນປັດຈຸບັນ
ສະຖານທີ່ຕົ້ນກໍາເນີດ: ປະເທດຈີນ
| DN | d | L | D | C | ຂຸມ (n-d) | t | H |
| 20 | 20 | 200 | 85 | 65 | 4-12 | 14 | 127 |
| 25 | 25 | 225 | 95 | 75 | 4-12 | 14 | 155 |
| 32 | 32 | 260 | 115 | 90 | 4-15 | 16 | 164 |
| 40 | 40 | 280 | 120 | 95 | 4-15 | 16 | 180 |
| 50 | 50 | 320 | 130 | 105 | 4-15 | 16 | 208 |
| 65 | 65 | 350 | 155 | 130 | 4-15 | 18 | 253 |
| 80 | 80 | 373 | 180 | 145 | 4-19 | 18 | 268 |
